Transformer Encoder Frankenstein: Library, CLI, and Research-Grounded Design Notes

Erick F. Merino M. This work is not affiliated erickfmm@gmail.com

February 2026

Abstract

This document presents Transformer Encoder Frankenstein as a configuration-driven toolkit for experimentation with modern encoder blocks, optimizer families, quantized de- ployment, and sentence-embedding workflows. The paper is organized as a technical map: it first explains how the schema constrains the system, then compares the supported model families, optimizer families, deployment path, and SBERT workflows. To improve practical readability, the document includes architecture diagrams, execution-flow diagrams, decision tables, and appendices that condense the supporting literature on transformer variants, sparse attention, gated attention, and optimizers.

Contents

1 Introduction 4 1.1 Reading Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2 Configuration-Centric Architecture 4 2.1 Schema Scope and Validation Rules . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2.2 Complete Model Feature Inventory . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2.3 Complete Training Feature Inventory . . . . . . . . . . . . . . . . . . . . . . . . . 7 2.4 Optimizer Prefix Contract (Full) . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2.5 Training Safety and Runtime Semantics . . . . . . . . . . . . . . . . . . . . . . . 9

3 Normalization Variants: RMSNorm, Dynamic Tanh, and Dynamic Erf 9 3.1 RMSNorm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 3.2 Dynamic Tanh (DyT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 3.3 Dynamic Erf (Derf) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 3.4 Schema Implications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

4 Attention and Sequence-Mixer Families 10 4.1 Standard Attention . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 4.2 Sigmoid Attention . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 4.3 Retentive Formulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 4.4 Selective SSM (Mamba) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 4.5 ODE-style Continuous Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 4.6 Test-time Memory (Titans) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 4.7 Sparse and Gated Extensions in the Current Codebase . . . . . . . . . . . . . . . 12 4.8 Implemented Sparse Attention Blocks (Detailed) . . . . . . . . . . . . . . . . . . 12 4.9 Implemented Gated Attention Blocks (Detailed) . . . . . . . . . . . . . . . . . . . 13

5 Optimizer Families and Training Dynamics 16 5.1 Core Adaptive Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 5.2 Examples from the Supported Set . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

6 Quantization and Deployment 17 6.1 Ternary Quantization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 6.2 Activation Quantization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 6.3 Size Estimates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

7 SBERT Downstream Tasks 18

8 Summary Tables 18 8.1 Attention and Sequence-Mixer Summary . . . . . . . . . . . . . . . . . . . . . . . 18 8.2 Optimizer Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

9 Discussion 20

10 Conclusion 20

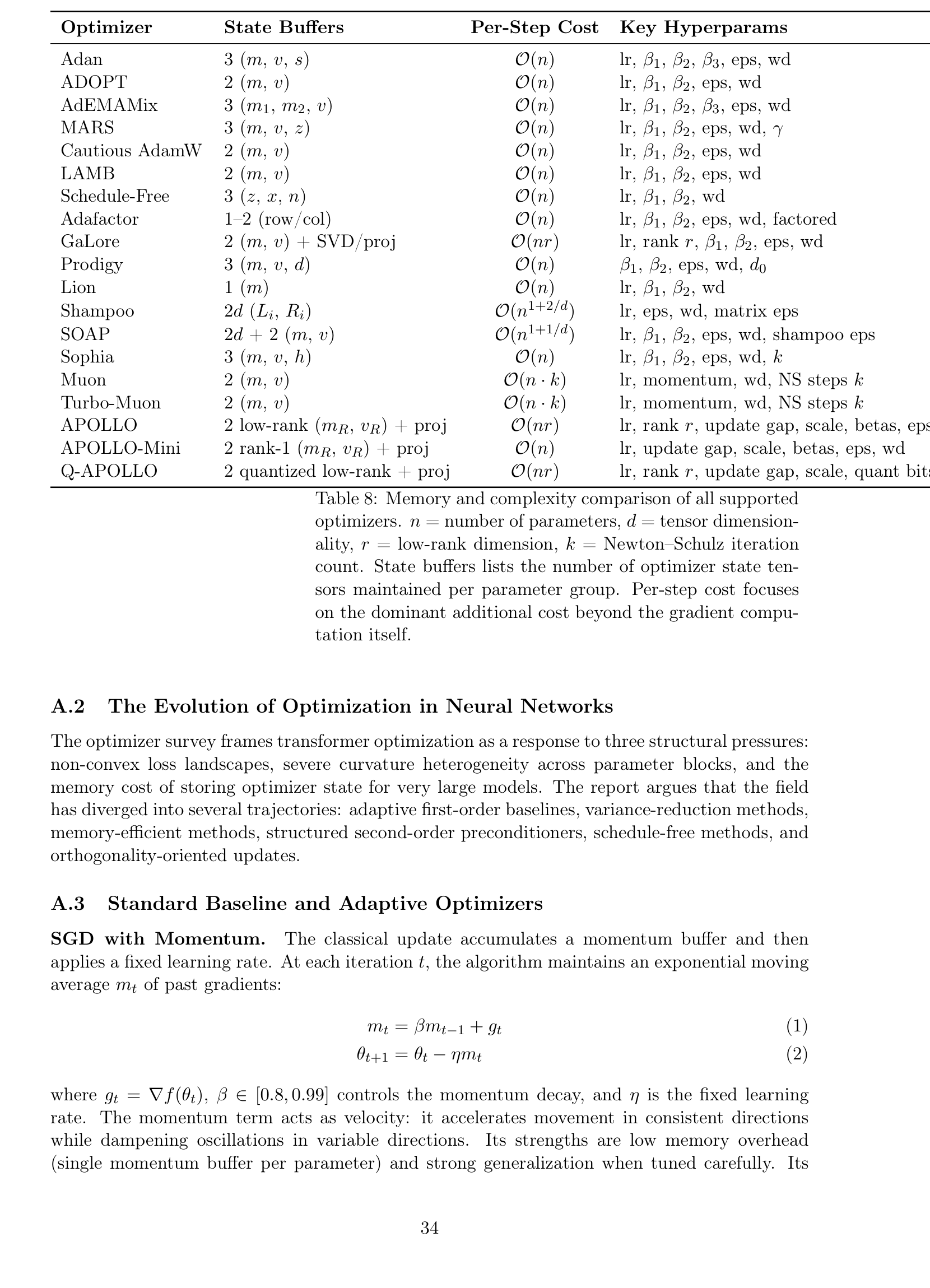

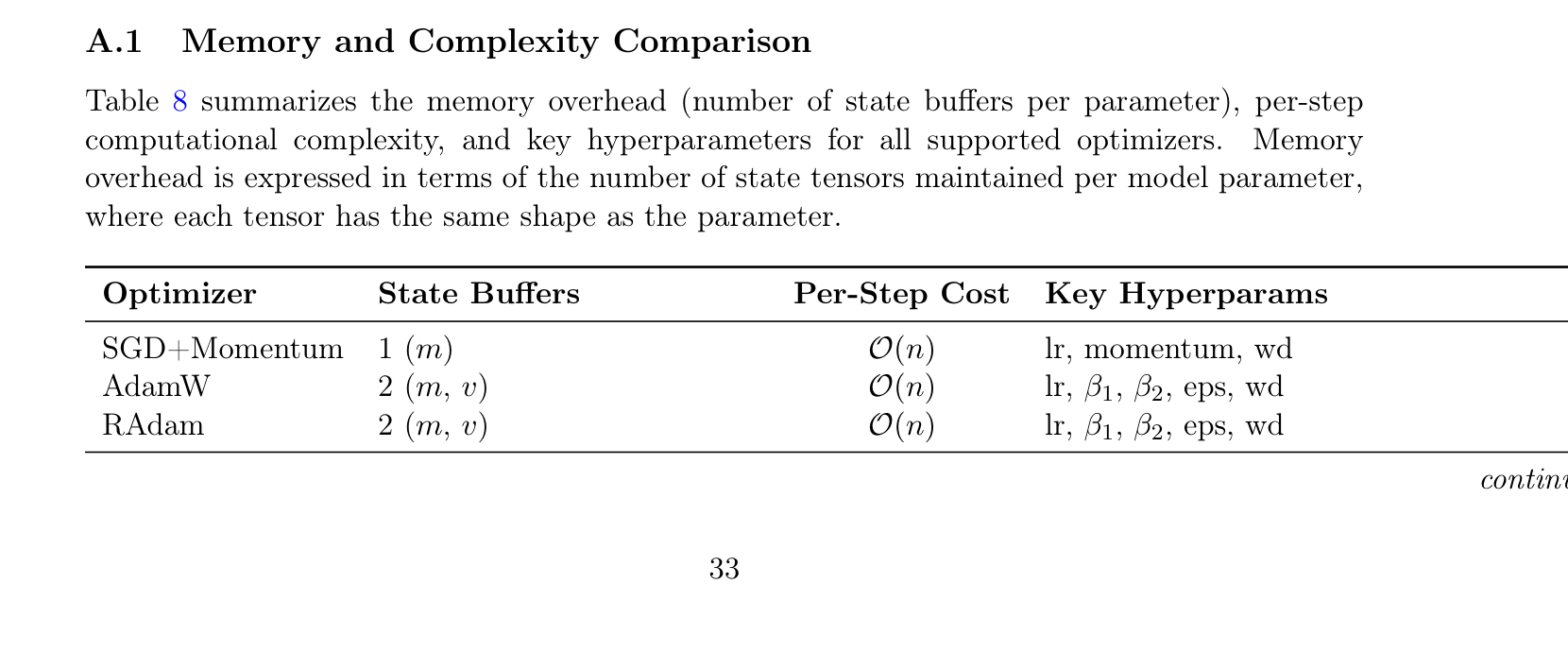

A Annex A: Optimizer Families from OPTIMIZERS.md 20 A.1 The Evolution of Optimization in Neural Networks . . . . . . . . . . . . . . . . . 20 A.2 Standard Baseline and Adaptive Optimizers . . . . . . . . . . . . . . . . . . . . . 20 A.3 Advanced Momentum and Variance Reduction (2024–2025) . . . . . . . . . . . . 21 A.4 Large-Batch, Memory-Efficient, and Parameter-Free Optimizers . . . . . . . . . . 21 A.5 Second-Order, Geometric, and Orthogonality Optimizers . . . . . . . . . . . . . . 21

B Annex B: Transformer Families from TRANSFORMER_TYPES.md 22 B.1 Standard Attention . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 B.2 Sigmoid Attention . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 B.3 RetNet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 B.4 Mamba . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 B.5 ODE Transformer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 B.6 Titans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 B.7 Synthesis and Systemic Insights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

C Annex C: Sparse Attention Families from SPARSE_TRANSFORMER_TYPES.md 24 C.1 Executive Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 C.2 Sparse Transformer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 C.3 Longformer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 C.4 BigBird . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 C.5 FASA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 C.6 NSA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 C.7 SparseK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 C.8 SpargeAttn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 C.9 Comparison Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

D Annex D: Gated Attention Families from GATED_TRANSFORMER_TYPES.md 27 D.1 Executive Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 D.2 Gated Linear Attention (GLA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 D.3 DeltaNet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 D.4 Gated DeltaNet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 D.5 RetNet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 D.6 HGRN2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

D.7 Forgetting Transformer (FoX) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 D.8 Gated Attention after SDPA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 D.9 Taxonomy and Comparison Dimensions . . . . . . . . . . . . . . . . . . . . . . . 28

CLI Surface train, infer, deploy sbert-train, sbert-infer

Schema Contract model_class, model, training

Model Families standard, sparse, gated, retentive, SSM, ODE, memory

Optimizer Router prefixed hyperparameters and safety controls

Outputs quantized checkpoints, embeddings, inference artifacts

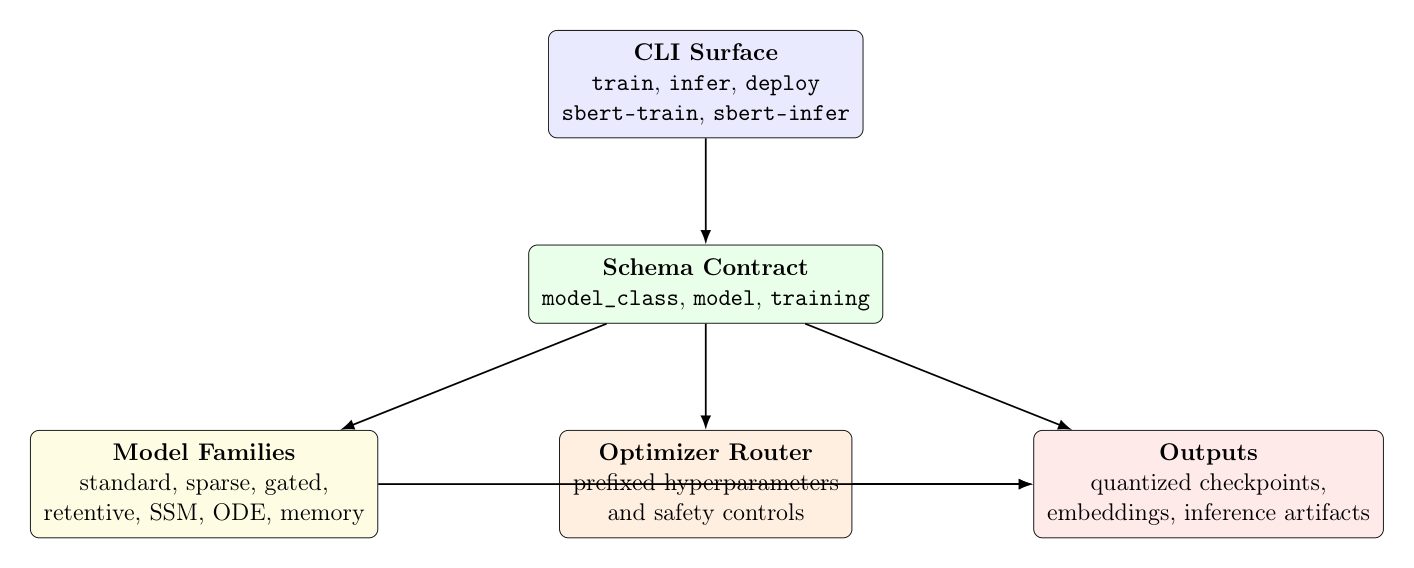

Figure 1: System view of the project: the CLI dispatches into a strict schema, which then controls architecture selection, optimizer behavior, and deploy/inference outputs.

1 Introduction

Transformer systems are now a production concern as much as a modeling concern [38, 14]. In practice, users need a single toolchain that can: (i) define training configurations with strict con- tracts, (ii) train with multiple optimizer and mixer families, (iii) deploy quantized checkpoints, and (iv) run sentence-embedding workflows inspired by SBERT [31]. The project command surface is:

frankestein-transformer

with subcommands: train, deploy, quantize, infer, sbert-train, sbert-infer. This paper is written to answer four operational questions:

1. What is the software contract that defines a valid experiment?

2. Which mixer or attention family should be used for a given memory/latency regime?

3. How are optimizer choices exposed through the schema and training loop?

4. How do deployment and sentence-embedding workflows connect back to the same model definition?

1.1 Reading Guide

Sections 2 and 3 describe the configuration contract and the supported model families. Section 4 explains normalization options exposed by the current schema. Section 5 covers optimizer rout- ing and training dynamics. Sections 6 and 7 describe deployment and SBERT workflows. Ap- pendix A–D act as annexes summarizing the supporting literature files in docs/bibliography/.

2 Configuration-Centric Architecture

The core design choice in this repository is that experimentation is schema first. Instead of exposing a large number of loosely checked flags, the project forces model topology, optimizer family, training limits, and telemetry options through a single validated configuration docu- ment. This reduces ambiguity when reproducing results and makes it possible to compare many architectures under a consistent operational interface.

The authoritative contract is src/training/configs/schema.yaml. It enforces three top- level objects:

• model_class

• model

• training

The model.layer_pattern supports legacy, sparse, and gated blocks:

• Retentive Network (RetNet) — internal reference: sun_retentive_2023 — code name: retnet, retnet_attn

• Mamba (Selective State Space Model) — internal reference: gu_mamba_2023 — code name: mamba

• ODE-style Continuous Depth Block — internal reference: zhang_continuous_2021 — code name: ode

• Titans Memory-Augmented Attention — internal reference: behrouz_titans_2025 — code name: titan_attn

• Standard Softmax Attention — internal reference: vaswani_attention_2017 — code name: standard_attn

• Sigmoid Self-Attention — internal reference: ramapuram_theory_2024 — code name: sigmoid_attn

• Sparse Transformer — internal reference: child_sparse_transformer_2019 — code name: sparse_transformer_attn

• Longformer — internal reference: beltagy_longformer_2020 — code name: longformer_attn

• BigBird — internal reference: zaheer_bigbird_2020 — code name: bigbird_attn

• SparseK Attention — internal reference: lou_sparsek_2024 — code name: sparsek_attn

• Native Sparse Attention (NSA) — internal reference: yuan_nsa_2025 — code name: nsa_attn

• SpargeAttn — internal reference: zhang_spargeattn_2025 — code name: sparge_attn

• FASA (Frequency-aware Sparse Attention) — internal reference: wang_fasa_2026 — code name: fasa_attn

• Gated Linear Attention (GLA) — internal reference: yang_gla_2023 — code name: gla_attn

• DeltaNet — internal reference: yang_deltanet_2024 — code name: deltanet_attn

• Gated DeltaNet — internal reference: yang_gated_deltanet_2024 — code name: gated_deltanet_attn

• HGRN2 — internal reference: qin_hgrn2_2024 — code name: hgrn2_attn

• Forgetting Transformer (FoX) — internal reference: lin_forgetting_transformer_2025 — code name: fox_attn

• Gated Softmax Attention — internal reference: qiu_gated_attention_2025 — code name: gated_softmax_attn

YAML Config

model_class model training

Model Block depth, heads, pattern, norms, FFN, MoE

Training Block dataset, AMP, clipping, scheduler, telemetry

Optimizer Block class + prefixed parameter groups

Figure 2: The schema acts as the experiment contract. The three top-level objects partition model definition, training runtime, and optimizer parameterization.

which corresponds to current attention and sequence-mixer literature [35, 16, 52, 2, 30, 38, 11, 3, 51, 45, 46, 47, 28, 21, 29]. The training.optimizer.optimizer_class supports a broad optimizer family: adamw, adafactor, radam, adan, adopt, ademamix, mars_adamw, cautious_adamw, schedulefree_adamw, lion, sophia, prodigy, muon, turbo_muon, shampoo, soap, and others.

2.1 Schema Scope and Validation Rules

The schema is strict: top-level and nested objects set additionalProperties: false. This guarantees that unknown keys fail fast instead of being silently ignored. The training.optimizer.parameters object is additionally constrained by optimizer-specific prefix rules through allOf+if/then pat- tern checks. Normalization values currently accepted by schema are:

norm_type ∈{layer_norm, dynamic_tanh, derf}

Thus, rms_norm is not a valid schema value in the current contract.

2.2 Complete Model Feature Inventory

Field Type/Range Meaning

vocab_size int ≥1 Vocabulary size. hidden_size int ≥1 Hidden dimension. num_layers int ≥1 Physical layer count. num_loops int ≥1 Logical loop count (looped blocks). num_heads int ≥1 Attention heads. retention_heads int ≥1 Retention heads for RetNet-style mixers. num_experts int ≥1 MoE expert count. top_k_experts int ≥1 Top-k expert routing in MoE. dropout float [0, 1] Global dropout.

Field Type/Range Meaning

layer_pattern array enum Ordered block list: legacy (retnet, retnet_attn, mamba, ode, titan_attn, standard_attn, sigmoid_attn), sparse (sparse_transformer_attn, longformer_attn, bigbird_attn, sparsek_attn, nsa_attn, sparge_attn, fasa_attn), and gated (gla_attn, deltanet_attn, gated_deltanet_attn, hgrn2_attn, fox_attn, gated_softmax_attn). ode_solver enum rk4 or euler. ode_steps int ≥1 ODE integration steps. use_bitnet bool Enable low-bit BitLinear path. norm_type enum layer_norm, dynamic_tanh, derf. use_factorized_embedding bool Enable factorized embeddings. factorized_embedding_dim int ≥1 Reduced embedding dimension for factoriza- tion. use_embedding_conv bool Enable Conv1d over embedding stream. embedding_conv_kernel int ≥1 Conv1d kernel size. hope_base float ≥0 HoPE base value (optional in schema). hope_damping float ≥0 HoPE damping (optional in schema). use_hope bool Apply HoPE in titan_attn. use_moe bool Enable MoE FFN routing path. ffn_hidden_size int ≥1 FFN intermediate width. ffn_activation enum silu or gelu.

Looped depth induced by schema is:

Llogical = num_layers × num_loops

which is the configuration-level definition of looped blocks.

2.3 Complete Training Feature Inventory

Field Type/Range Meaning

batch_size int ≥1 Loader batch size. dataloader_workers int ≥0 PyTorch dataloader workers. max_length int ≥1 Sequence length cap. mlm_probability float [0, 1] MLM masking probability. max_samples int ≥1 Maximum streamed samples. dataset_batch_size int ≥1 Internal streaming dataset chunk size. num_workers int ≥0 Streaming dataset workers. cache_dir string Dataset cache directory. local_parquet_dir string Optional local parquet path. prefer_local_cache bool Prefer local cache when available. stream_local_parquet bool Stream from local parquet mode. use_amp bool Mixed precision toggle. gradient_accumulation_steps int ≥1 Effective batch through accumulation. optimizer object Contains optimizer_class and prefixed parameters. scheduler_total_steps int ≥1 Scheduler horizon. scheduler_warmup_ratio float [0, 1] Warmup ratio. scheduler_type enum cosine, constant, linear_warmup_then_constant.

Field Type/Range Meaning

grad_clip_max_norm float ≥0 Global norm clipping threshold. inf_post_clip_threshold float ≥0 Exploding-gradient guard threshold after clip- ping. max_nan_retries int ≥0 Retry budget for NaN/Inf instability. checkpoint_every_n_steps int ≥1 Rolling checkpoint frequency. max_rolling_checkpoints int ≥1 Number of rolling checkpoints to keep. num_best_checkpoints int ≥1 Number of best checkpoints tracked. nan_check_interval int ≥1 NaN/Inf check cadence. log_gradient_stats bool Enable gradient statistics logging. gradient_log_interval int ≥1 Gradient logging cadence. csv_log_path string Step-level CSV output path. csv_rotate_on_schema_change bool Rotate CSV if logging schema changes. gpu_metrics_backend enum nvml or none. nvml_device_index int ≥0 Device index for NVML telemetry. enable_block_grad_norms bool Include per-block gradient norm telemetry. telemetry_log_interval int ≥1 Heavy telemetry interval (optimizer steps). use_galore bool Enable GaLore strategy. galore_rank int ≥1 GaLore low-rank projection dimension. galore_update_interval int ≥1 Projection refresh interval. galore_scale float ≥0 Gradient scaling in projected space. galore_max_dim int ≥1 Maximum tensor dimension for GaLore pro- jection.

2.4 Optimizer Prefix Contract (Full)

Supported optimizer_class values are: sgd_momentum, adamw, adafactor, galore_adamw, prodigy, lion, sophia, muon, turbo_muon, radam, adan, adopt, ademamix, mars_adamw, cautious_adamw, lamb, schedulefree_adamw, shampoo, soap. Shared per-group suffix families (all prefixed by optimizer name) are:

• LR groups: lr_embeddings, lr_norms, lr_ode, lr_retnet, lr_mamba, lr_attention, lr_other

• Weight decay groups: wd_embeddings, wd_norms, wd_ode, wd_retnet, wd_mamba, wd_attention, wd_other

• Beta groups: betas_embeddings, betas_norms, betas_ode, betas_retnet, betas_mamba, betas_attention, betas_other

• Epsilon groups: eps_embeddings, eps_norms, eps_ode, eps_retnet, eps_mamba, eps_attention, eps_other

Optimizer-specific global suffixes:

• sgd_momentum: momentum, nesterov

• adafactor: beta2_decay, clip_threshold, eps1, eps2

• galore_adamw: rank, update_proj_gap

• prodigy: d_coef

• sophia: rho, update_k

• muon / turbo_muon: momentum, nesterov, ns_steps, ns_eps

• cautious_adamw: cautious_clip

All other classes in the list above accept only prefixed shared groups.

Algorithm 1 Schema-Driven Training Step with Stability Controls Require: Batch stream, config C

1: Initialize retry counter r ←0

2: for each optimizer step do

3: Accumulate gradients for K = C.gradient_accumulation_steps micro-batches

4: Apply global norm clipping with τ = C.grad_clip_max_norm

5: if post-clip gradient exceeds C.inf_post_clip_threshold or NaN/Inf detected then

6: if r < C.max_nan_retries then

7: restore safe state / skip step; r ←r + 1

8: continue

9: else

10: stop training with failure state

11: end if

12: end if

13: run optimizer step selected by optimizer_class

14: update scheduler (cosine, constant, or linear_warmup_then_constant)

15: if step mod checkpoint_every_n_steps= 0 then

16: save rolling checkpoint and prune to max_rolling_checkpoints

17: end if

18: update best checkpoints up to num_best_checkpoints

19: emit CSV + telemetry following gradient_log_interval and telemetry_log_interval

20: end for

2.5 Training Safety and Runtime Semantics

Schema-level safety features include accumulation, clipping, post-clip explosion checks, and NaN retries:

K X

gacc = 1

i=1 gi, K = gradient_accumulation_steps

K

gclip = gacc · min  1, τ ∥gacc∥2 + ϵ

 , τ = grad_clip_max_norm

then overflow guards use inf_post_clip_threshold and retry logic bounded by max_nan_retries.

3 Normalization Variants: RMSNorm, Dynamic Tanh, and Dy- namic Erf

Normalization determines how activation scale is controlled across depth. In this repository, normalization is not only a modeling choice but also a schema compatibility question, because only certain values are currently accepted by norm_type. The three formulations most relevant to this codebase are:

3.1 RMSNorm

RMSNorm removes mean-centering and only rescales by root mean square magnitude [? ]:

v u u t1

d X

i=1 x2 i + ϵ, yi = γi xi RMS(x)

RMS(x) =

d

Compared with LayerNorm, RMSNorm is computationally simpler (no subtraction of feature mean) and is often used when reducing normalization overhead is important.

3.2 Dynamic Tanh (DyT)

Dynamic Tanh proposes replacing explicit normalization with a bounded elementwise map [56]:

DyT(x) = tanh(αx)

where α is learned. The core idea is that bounded nonlinear contraction can provide stable signal scaling without explicitly computing per-token normalization statistics.

3.3 Dynamic Erf (Derf)

Derf extends the same normalization-free direction by using an error-function based map [9]:

Derf(x) = erf(αx + s)

with learnable scale/shift. Reported results in the cited work indicate stronger performance than DyT and common normalization baselines across multiple domains.

3.4 Schema Implications

Current configuration contract in this repository allows:

norm_type ∈{layer_norm, dynamic_tanh, derf}

so DyT and Derf are directly available in schema-driven runs, while RMSNorm is not currently an accepted enum value and would require code/schema extension.

Method Formula Stats Needed Notes

RMSNorm yi = γixi/ q

1 d P

j x2 j + ϵ RMS only Lower overhead than Layer- Norm; widely used normal- ization baseline [? ]. Dynamic Tanh tanh(αx) none Normalization-free bounded transform; simple drop-in re- placement direction [56]. Dynamic Erf (Derf) erf(αx + s) none Normalization-free alterna- tive designed to improve over DyT [9].

4 Attention and Sequence-Mixer Families

This is the most heterogeneous part of the project. The supported blocks fall into five practical groups:

1. dense attention baselines,

2. linear-recurrent or retentive alternatives,

3. continuous-depth blocks,

4. sparse attention families for longer contexts,

5. gated mechanisms that control forgetting or memory writes.

Layer Pattern Registry

Dense standard sigmoid

Sparse Sparse Transformer, Longformer, BigBird, SparseK, NSA, SpargeAttn, FASA

Recurrent / Retentive RetNet, Mamba, ODE, Titans

Gated GLA, DeltaNet, Gated DeltaNet, HGRN2, FoX, Gated Softmax

Figure 3: Taxonomy of the supported sequence mixers and attention blocks. The registry mixes classical dense attention, recurrent alternatives, sparse approximations, and gated memory mechanisms.

4.1 Standard Attention

Given projected matrices (Q, K, V ):

Attn(Q, K, V ) = softmax QK⊤

 V

√dk

This is the baseline mechanism for content routing [38].

4.2 Sigmoid Attention

Sigmoid attention removes row-wise probability normalization:

SigmoidAttn(Q, K, V ) = σ QK⊤

√dk + b  V

and has different training stability requirements, often with additional normalization [30].

4.3 Retentive Formulation

RetNet uses retention with decay matrix D:

Retention(Q, K, V ) =  QK⊤⊙D  V

with recurrent form: Sn = γSn−1 + k⊤ n vn, on = qnSn

enabling low-cost recurrent inference [35, 43].

4.4 Selective SSM (Mamba)

Discrete selective state-space recurrence is:

ht = ¯Atht−1 + ¯Btxt, yt = Ctht

where ( ¯At, ¯Bt, Ct) depend on input, preserving linear-time scaling with hardware-aware scan [16, 19].

Token sequence

Hybrid sparse graph BigBird / Sparse Transformer

Selective pruning SparseK / NSA / FASA / SpargeAttn

Local / windowed Longformer

Three sparse design strategies: locality, structured graph sparsity, and learned or predicted selection

Figure 4: Conceptual map of sparse attention design choices used in the codebase. Different methods reduce cost by restricting neighborhoods, constructing sparse graphs, or selecting only high-value tokens/blocks.

4.5 ODE-style Continuous Updates

Continuous-depth framing: dh(t)

dt = fθ(h(t), t)

with practical RK integrators for discrete execution [52].

4.6 Test-time Memory (Titans)

A memory-augmented update can be written:

Mt = (1 −αt)Mt−1 + St, St = ηtSt−1 −θt∇ℓ(Mt−1; xt)

to adapt memory at inference time [2, 1].

4.7 Sparse and Gated Extensions in the Current Codebase

The mixer registry now includes sparse blocks: sparse_transformer_attn, longformer_attn, bigbird_attn, sparsek_attn, nsa_attn, sparge_attn, and fasa_attn; and gated blocks: gla_attn, deltanet_attn, gated_deltanet_attn, hgrn2_attn, fox_attn, and gated_softmax_attn. The implementation enforces an explicit execution policy for training-free sparse methods: fasa_attn and sparge_attn are eval/inference-only and raise runtime errors if used while the model is in training mode.

4.8 Implemented Sparse Attention Blocks (Detailed)

This codebase includes seven sparse attention families aligned with the sparse attention survey notes in docs/bibliography/SPARSE_TRANSFORMER_TYPES.md [11, 3, 51, 25, 49, 54, 41].

Sparse Transformer (sparse_transformer_attn). Uses factorized sparse masks (strided + fixed) to approximate dense connectivity at lower cost than full O(n2) attention:

qiK⊤ Ai √dk

!

Attni = softmax

VAi

where Ai is the sparse neighborhood induced by stride/fixed rules. [11]

Longformer (longformer_attn). Uses sliding-window locality with optional global tokens:

Ai = {j : |i −j| ≤w/2} ∪G

yielding linear scaling in sequence length for fixed window w. [3]

BigBird (bigbird_attn). Combines local windows, random links, and global tokens:

Ai = Awindow i ∪Arandom i ∪Aglobal i

to preserve strong long-context connectivity with sparse computation. [51]

SparseK (sparsek_attn). Uses a differentiable top-k style projection over importance scores before attention, so only selected KV pairs participate in the expensive dot-product path. [25]

NSA (nsa_attn). Implements a three-branch sparse design: compressed branch, selected branch, and local window branch, then combines them with learned gates:

c∈{cmp,sel,win} gc t Attn(qt, ˜Kc t , ˜V c t )

ot = X

[49]

SpargeAttn (sparge_attn). Two-stage training-free block filtering: first predicts negligible block interactions, then applies softmax-aware pruning to remove low-contribution blocks. [54]

FASA (fasa_attn). Frequency-aware training-free attention: uses dominant RoPE frequency chunks for token importance prediction, then applies full attention only on selected tokens. [41]

Block Trainable Asymptotic Trend Primary Sparsity Unit Current Integration Notes Ref

[11]

Sparse Trans- former Yes sub- quadratic mask pattern (token-level) Factorized strided/fixed masks inside SDPA pipeline.

Longformer Yes linear in n (fixed w) sliding window + global tokens Window mask with op- tional global indices. [3]

Randomized sparse mask plus local/global paths. [51]

BigBird Yes near-linear window + ran- dom + global edges

[25]

Learned score net + SparseK projection + gathered KV attention.

differentiable top-k KV selection

SparseK Yes linear-like (selected KV)

[49]

Three sparse branches gated into one output tensor.

NSA Yes reduced- token multi- branch

compressed blocks + se- lected blocks + local window

SpargeAttn No (training- free)

sparse block dependent block-level pre- dicted sparsity Eval-only in this repo; raises in training mode. [54]

FASA No (training- free)

selected- token de- pendent

dominant fre- quency chunks + selected tokens

Eval-only in this repo; raises in training mode. [41]

4.9 Implemented Gated Attention Blocks (Detailed)

This codebase includes seven gated blocks aligned with docs/bibliography/GATED_TRANSFORMER_TYPES.md [45, 46, 47, 35, 28, 21, 29]. The unifying idea is that gating controls what information survives. Some gates act on re- current state updates (GLA, DeltaNet variants, HGRN2), while others modify the full attention path itself (FoX and Gated Softmax). This makes gating especially useful when the model must trade off recall, recency, and bounded memory.

Previous state St−1

Gate(s) αt, βt, Gt, ft

New key/value or SDPA output

Updated memory / output St or Ot

Figure 5: Generic gating template. A gate can decay existing memory, regulate write strength, or modulate dense attention outputs, depending on the block family.

GLA (gla_attn). Gated Linear Attention applies data-dependent multiplicative decay in recurrent state updates: St = Gt ⊙St−1 + vtk⊤ t , ot = Stqt

to control memory accumulation. [45]

DeltaNet (deltanet_attn). Uses a delta-rule error-correcting write with learned write strength βt: St = St−1(I −βtktk⊤ t ) + βtvtk⊤ t

which improves targeted memory replacement. [46]

Gated DeltaNet (gated_deltanet_attn). Adds decay gate αt on top of delta-rule writes:

St = αtSt−1(I −βtktk⊤ t ) + βtvtk⊤ t

for both global forgetting and local corrective updates. [47]

RetNet Attn Alias (retnet_attn). Provides an explicit gated-package alias wrapping multi- scale retention behavior for naming consistency in layer registries. [35]

HGRN2 (hgrn2_attn). Uses lower-bounded forget gates with outer-product state expansion:

St = diag(gt)St−1 + vtk⊤ t

to increase recurrent state expressiveness while remaining efficient. [28]

FoX (fox_attn). Injects token-wise forget bias directly into softmax logits:

O = softmax(QK⊤+ D)V

where D is derived from cumulative log-forget gates. [21]

Algorithm 2 Pattern-Driven Mixer Forward (Conceptual) Require: Hidden states H, pattern P, layer index ℓ

1: m ←P[ℓmod |P|]

2: if m ∈{fasa_attn, sparge_attn} and model is in training mode then

3: raise configuration/runtime error (training-free block in train mode)

4: else if m = standard_attn then

5: H ←softmax-attention(H)

6: else if m = sigmoid_attn then

7: H ←sigmoid-attention(H)

8: else if m ∈{retnet, retnet_attn} then

9: H ←retention(H)

10: else if m = mamba then

11: H ←selective-ssm(H)

12: else if m = ode then

13: H ←rk-step(H)

14: else if m is a sparse attention key then

15: H ←sparse-attention-family(H)

16: else if m is a gated attention key then

17: H ←gated-attention-family(H)

18: else

19: H ←memory-augmented-attn(H)

20: end if

21: return H

Gated Softmax (gated_softmax_attn). Applies a post-SDPA sigmoid gate:

Y ′ = SDPA(Q, K, V ) ⊙σ(XWg)

which adds multiplicative channel gating without replacing softmax attention. [29]

Block State Type Gate Mech- anism Softmax Path Current Integration Notes Ref

No (linear recurrent) Recurrent update with low-rank gate projection. [45]

GLA matrix re- current state data- dependent multiplicative decay

DeltaNet matrix re- current state write gate (β) No (linear recurrent) Delta-rule correction with normalized Q/K. [46]

Gated DeltaNet matrix re- current state decay + write gates (α, β) No (linear recurrent) Combined forgetting and targeted writing. [47]

RetNet Attn matrix re- current state fixed multi- scale decay No (reten- tion) Alias wrapper over exist- ing RetNet mixer. [35]

HGRN2 matrix re- current state lower- bounded forget gate

No (linear recurrent) Hierarchical recurrent gat- ing with outer products. [28]

FoX full attention matrix logit-space forget gate Yes Forget bias added before softmax. [21]

Gated Softmax full attention matrix post-attention sigmoid gate Yes Sigmoid gating applied af- ter SDPA output. [29]

Choose optimizer objective

Reliable baseline AdamW / RAdam

Lower optimizer memory Adafactor / GaLore / Lion

Aggressive or structured Adan, ADOPT, Sophia, Shampoo, SOAP, Muon

Schema-prefixed groups LR, weight decay, betas, eps

Figure 6: Optimizer selection in practice: the class determines the update rule, while the schema controls how hyperparameters are applied across embeddings, norms, recurrent blocks, attention blocks, and other parameters.

5 Optimizer Families and Training Dynamics

Optimizer support is broad because the project is intended as a research workbench, not a single- model training script. The schema therefore separates two concerns: selecting an optimizer class and routing the right prefixed hyperparameters to the correct parameter groups.

5.1 Core Adaptive Form

Many supported optimizers share moment tracking:

mt = β1mt−1 + (1 −β1)gt, vt = β2vt−1 + (1 −β2)g2 t

followed by preconditioned updates (e.g., AdamW) [24].

5.2 Examples from the Supported Set

• RAdam: variance rectification for early-step instability [23].

• Adan: adaptive Nesterov momentum for faster convergence [42].

• ADOPT: modified Adam order yielding stronger convergence guarantees [37].

• AdEMAMix: dual-EMA history mixing [27].

• MARS: variance reduction in preconditioned optimization [50].

• Cautious optimizers: sign-consistent masking of momentum updates [20].

• Schedule-free: remove explicit scheduler dependence [13].

• Shampoo/SOAP: matrix preconditioning families [18, 39].

• Adafactor/GaLore: memory reduction via factorization or low-rank projection [33, 55].

• Prodigy/Lion/Sophia: parameter-free adaptation, sign momentum, and clipped second- order scaling [26, 10, 22].

• Muon/Turbo-Muon: orthogonality-oriented updates with acceleration [34, 4].

Algorithm 3 Schema-Routed Optimizer Step (Conceptual) Require: Parameters θ, gradients g, optimizer class c, parameter map Π

1: Read optimizer-specific hyperparameters from prefixed keys in Π

2: if c = adamw then

3: apply AdamW step [24]

4: else if c = radam then

5: apply rectified adaptive step [23]

6: else if c = adan then

7: apply Adan three-moment step [42]

8: else if c = adopt then

9: apply ADOPT update ordering [37]

10: else if c = galore_adamw then

11: project gradients to low-rank subspace then step [55]

12: else

13: dispatch to selected optimizer implementation

14: end if

15: return updated θ

Trained checkpoint Weight packing ternary / low-bit

Activation scaling INT8 path

Deployable artifact smaller storage footprint

Figure 7: Deployment path from a trained checkpoint to a compact artifact. The codebase treats quantization as a deploy-stage transformation rather than a separate model family.

6 Quantization and Deployment

The deploy stack uses ternary weight packing plus INT8 activation quantization for efficient artifacts.

6.1 Ternary Quantization

Given weight tensor W, a practical scaling is:

s = mean(|W|), ˜W = clip  round W

 , −1, 1

s

which approximates BitNet-style low-bit updates [40]. The packed mapping uses two bits per weight symbol for storage efficiency.

6.2 Activation Quantization

For activations x:

q = round  x · 127 max(|x|) + ϵ

 , q ∈[−128, 127]

with dequantization x ≈q/α.

6.3 Size Estimates

For N parameters:

FP32 size ≈4N, FP16 size ≈2N, 1.58-bit size ≈1.58

8 N

before metadata and packing overhead. This aligns with lightweight deployment goals [32, 5].

Shared encoder

Similarity cosine score

Search top-k retrieval

Cluster / encode offline analysis

Figure 8: SBERT workflow reuse. A single encoder supports online pair scoring, corpus retrieval, clustering, and persistent embedding export.

Algorithm 4 SBERT Inference Mode Router Require: mode m, model E, inputs X

1: if m = similarity then

2: return cos(E(x1), E(x2))

3: else if m = search then

4: return top-k by dot-product/cosine against corpus embeddings

5: else if m = cluster then

6: return clustering labels over E(X)

7: else

8: return serialized embeddings E(X)

9: end if

7 SBERT Downstream Tasks

Sentence embedding is built on Siamese-style training [31]. For sentence pair (s1, s2) with embeddings (e1, e2):

cos(e1, e2) = e⊤ 1 e2 ∥e1∥∥e2∥

and regression-style cosine loss:

Lcos = (cos(e1, e2) −y)2

with y ∈[−1, 1] in this pipeline. Supported downstream modes:

• Similarity: pairwise score between two sentences.

• Search: top-k nearest neighbors over a corpus.

• Cluster: grouping embeddings (e.g., k-means).

• Encode: persistent embedding export for later retrieval.

8 Summary Tables

8.1 Attention and Sequence-Mixer Summary

Type Core Equation Train Infer Notes

Standard At- tention softmax(QK⊤/√dk)V O(n2d) O(n)/step Baseline expressive global rout- ing [38]. Sigmoid Atten- tion σ(QK⊤/√dk + b)V O(n2d) O(n)/step Element-wise gating; often needs stabilization norm [30]. RetNet (QK⊤⊙D)V O(n2d) or chunkwise O(1)/step Parallel/recurrent dual form with decay retention [35]. Mamba ht = ¯Atht−1 + ¯Btxt O(nd) O(1)/step Selective state-space with hardware-aware scan [16]. ODE-style block

dh

dt = fθ(h, t) solver- dependent solver- dependent Continuous-depth interpreta- tion; RK integration [52]. Titans memory Mt = (1−αt)Mt−1+ St approx. O(nd) retrieval- centric Test-time memory updates with surprise-driven dynamics [2].

8.2 Optimizer Summary

Optimizer Family State Cost Key Idea Ref

High Decoupled weight decay baseline [24]

AdamW Adaptive first/second moment

RAdam Adaptive variance-corrected High Rectifies early adaptive variance [23]

High Nesterov-style adaptive update [42]

Adan Momentum + variance reduc- tion

ADOPT Adam variant High Reordered updates with improved convergence guarantees [37]

AdEMAMix Multi-EMA adap- tive High Mixes short and long horizon EMAs [27]

MARS Variance-reduced preconditioned High Recursive momentum correction [50]

Cautious AdamW Masked momen- tum High Apply updates only on sign- consistent directions [20]

Schedule-free AdamW Scheduler-free adaptive High Remove explicit LR schedule de- pendence [13]

Adafactor Memory-efficient adaptive Medium Factorized second moments for ma- trix tensors [33]

GaLore AdamW Low-rank gradient projection Medium Optimize in projected low-rank gra- dient space [55]

Prodigy Parameter-free adaptation Medium Distance-adaptive step calibration [26]

Lion Sign momentum Low Momentum sign update, reduced state [10]

Sophia Approx. second- order Medium Diagonal Hessian preconditioning with clipping [22]

Shampoo Matrix precondi- tioner High Kronecker-structured second-order statistics [18]

SOAP Shampoo + Adam basis High Adam-like tracking in precondi- tioner eigenbasis [39]

Muon Orthogonality- based Medium Orthogonalized matrix updates [34]

Turbo-Muon Accelerated or- thogonalization Medium Preconditioned Newton-Schulz speedup [4]

9 Discussion

From an engineering perspective, the toolkit couples modern research ideas with reproducible interfaces:

• Explicit schema contracts lower configuration ambiguity.

• Multiple attention/mixer families let users tune for context length, latency, and memory.

• Broad optimizer support enables controlled studies over convergence and stability.

• Quantized deployment reduces artifact size and improves portability.

• SBERT workflows cover practical retrieval and semantic similarity tasks.

The design also aligns with multilingual and compact-model directions in the literature [8, 36, 6, 15].

10 Conclusion

Transformer Encoder Frankenstein is positioned as a practical experimentation platform: a strict configuration schema, extensible optimizer and attention families, deploy-time quantization, and sentence embedding workflows in one CLI. This makes it suitable for both rapid iteration and reproducible model operations.

A Annex A: Optimizer Families from OPTIMIZERS.md

A.1 The Evolution of Optimization in Neural Networks

The optimizer survey frames transformer optimization as a response to three structural pressures: non-convex loss landscapes, severe curvature heterogeneity across parameter blocks, and the memory cost of storing optimizer state for very large models. The report argues that the field has diverged into several trajectories: adaptive first-order baselines, variance-reduction methods, memory-efficient methods, structured second-order preconditioners, schedule-free methods, and orthogonality-oriented updates.

A.2 Standard Baseline and Adaptive Optimizers

SGD with Momentum. The classical update accumulates a momentum buffer and then applies a fixed learning rate. Its strengths are low memory overhead and strong generaliza- tion when tuned carefully. Its main weakness in transformer workloads is poor robustness to heterogeneous curvature and a high dependence on learning-rate schedules.

Adam and AdamW. Adam tracks first and second moments of the gradient; AdamW decou- ples weight decay from the adaptive step. The report treats AdamW as the practical baseline for transformer fine-tuning because it converges quickly and is relatively forgiving. The tradeoff is state cost, since both moment tensors must be stored for every parameter.

RAdam. RAdam introduces variance rectification in early training, motivated by the obser- vation that Adam’s adaptive denominator is unreliable during initial steps. It is positioned as a way to reduce warmup sensitivity without abandoning the Adam family.

A.3 Advanced Momentum and Variance Reduction (2024–2025)

Adan. Adan reformulates Nesterov-style momentum so that it does not need the extra for- ward/backward pass of classical Nesterov acceleration. The survey emphasizes its fast conver- gence across CNNs, GANs, and transformers, but also notes the cost of keeping three momentum- like states.

ADOPT. ADOPT modifies Adam’s update ordering to address theoretical non-convergence issues. In the report it is presented as a drop-in adaptive optimizer with stronger convergence guarantees and broad empirical performance, especially when one wants Adam-like behavior with fewer theoretical caveats.

AdEMAMix. AdEMAMix mixes short-horizon and long-horizon exponential moving aver- ages. The key idea is to combine fast adaptation with slower historical smoothing so the opti- mizer can respond to sharp local changes without discarding longer-term signal.

MARS. MARS belongs to the variance-reduction line of work. The survey frames it as a way to make preconditioned adaptive optimization more stable by correcting momentum recursion and reducing gradient noise.

Cautious Optimizers. Cautious AdamW and related variants mask updates when the mo- mentum direction and the current gradient disagree. The intended effect is to suppress harmful steps and keep only sign-consistent motion.

A.4 Large-Batch, Memory-Efficient, and Parameter-Free Optimizers

LAMB. LAMB is included in the survey as a large-batch optimizer that scales updates lay- erwise. Its practical role is to keep optimization stable when batch sizes become very large.

Schedule-Free AdamW. Schedule-free methods remove explicit scheduler design from the optimization recipe. The markdown emphasizes operational simplicity: instead of investing effort in warmup and decay design, one can use an optimizer whose update dynamics absorb part of that responsibility.

Adafactor. Adafactor factorizes second-moment statistics for matrix-shaped parameters, dra- matically reducing optimizer-state memory. It is most attractive when memory is the bottleneck and some loss in optimizer simplicity is acceptable.

GaLore. GaLore projects gradients into a low-rank subspace before optimization. The report treats it as a complementary memory-saving path that is especially relevant when the model is too large for full-rank optimizer state.

Prodigy. Prodigy is grouped under parameter-free or distance-adaptive methods. The core claim is that it estimates effective step sizes from optimization geometry, reducing the need for explicit learning-rate tuning.

A.5 Second-Order, Geometric, and Orthogonality Optimizers

Shampoo. Shampoo computes matrix preconditioners from Kronecker-structured statistics. It is one of the most explicit second-order methods in the report and is motivated by conditioning improvements rather than minimal implementation complexity.

SOAP. SOAP keeps Adam-style tracking in the eigenbasis of a Shampoo-like preconditioner. The survey presents it as a hybrid between full matrix preconditioning and adaptive first-order behavior.

Lion. Lion uses sign momentum updates and therefore carries much smaller state than Adam- like methods. The markdown positions it as a low-memory, high-throughput alternative rather than a universally superior optimizer.

Sophia. Sophia uses approximate second-order information through diagonal Hessian esti- mates and clipped updates. It belongs to the family of curvature-aware methods that seek better conditioning without paying the full cost of dense second-order optimization.

Muon and Turbo-Muon. Muon and Turbo-Muon are described as orthogonality-oriented optimizers that explicitly reshape update geometry. Turbo-Muon adds faster Newton–Schulz- style orthogonalization, making the same basic idea more practical at scale.

Group Methods Primary Goal Interpretation from the Sur- vey

These define the comparison floor for newer optimizer claims.

Classical base- line SGD, AdamW, RAdam stability and reference baselines

Best when convergence speed or noisy-gradient stability is the main concern.

faster or safer first- order adap- tation

Momentum re- design Adan, AdEMAMix, MARS, Cautious AdamW

Reduce brittleness from batch-size growth or schedule engineering.

LAMB, Schedule-Free AdamW operational robustness at scale

Large-batch and schedule simpli- fication

Most useful when VRAM is dom- inated by optimizer state rather than activations. Curvature- aware Shampoo, SOAP, Sophia better condi- tioning Prefer when richer geometry is worth implementation and com- pute overhead. Geometry- oriented Muon, Turbo-Muon orthogonalized update structure

Memory- efficient Adafactor, GaLore, Lion optimizer- state reduc- tion

Specialized options for matrix ge- ometry and representation shap- ing.

B Annex B: Transformer Families from TRANSFORMER_TYPES.md

B.1 Standard Attention

The markdown presents standard attention as the reference architecture for global contextu- alization. Every token attends to every other token through a softmax-normalized similarity matrix. Its major advantage is expressiveness: it can preserve perfect historical recall inside the active context window and it parallelizes well during training. Its main limitations are the quadratic training footprint and the KV-cache burden during decoding.

B.2 Sigmoid Attention

Sigmoid attention keeps the same query–key similarity matrix but replaces row-wise softmax normalization with an elementwise sigmoid. The survey highlights three implications: token competition is reduced, the computation avoids some row-wise synchronization, and the method

can be more hardware-friendly. The cost is training instability at scale, which motivated the “hybrid-norm” stabilization techniques discussed in the source document.

B.3 RetNet

RetNet is presented as a bridge between attention and recurrence. In parallel form it resembles an attention-like interaction masked by exponential decay; in recurrent form it compresses history into a fixed-size state updated with decay. The report emphasizes its triple computation modes: parallel, recurrent, and chunkwise recurrent. The main tradeoff is that the fixed decay law imposes a stronger inductive bias than unconstrained softmax attention.

B.4 Mamba

Mamba replaces explicit attention with a selective state-space recurrence whose parameters depend on the input. The annex source stresses that its importance lies not only in linear asymptotic complexity but also in the hardware-aware scan algorithm that makes the linear recurrence practical on accelerators. The downside is that state compression can weaken exact recall and copying behavior relative to full attention.

B.5 ODE Transformer

The ODE transformer treats depth as numerical integration over a continuous dynamical system. The source discusses Runge–Kutta refinement as a way to reduce truncation error and improve sequence generation quality. The benefit is a more expressive intra-block trajectory with weight sharing; the drawback is higher cost because each block now behaves like several solver stages.

B.6 Titans

Titans introduces test-time neural memorization: instead of storing only activations, the model updates an internal memory using surprise-driven learning signals during inference. The mark- down frames this as a way to handle extremely long contexts and associative recall beyond what fixed-state recurrent models typically support. The systems cost is higher implementation complexity because inference now includes memory adaptation logic.

B.7 Synthesis and Systemic Insights

The transformer survey ends with four synthesis claims:

• sequence modeling is shaped by an expressivity-versus-compression tradeoff,

• hardware substrate constraints now strongly influence which architectures win,

• continuous-time views provide a useful language for understanding depth and refinement,

• the field is converging toward hybrid models that mix compression, recurrence, sparse routing, and test-time adaptation.

Architecture Training Trend Inference Trend Main Characterization in the Markdown

Standard At- tention quadratic KV-cache based, linear per step

Highest expressiveness and direct to- ken routing, but bottlenecked by dense pairwise interactions.

Architecture Training Trend Inference Trend Main Characterization in the Markdown

Sigmoid Atten- tion quadratic linear per step Removes zero-sum competition and improves kernel behavior, but needs stabilization for large-scale training. RetNet chunkwise or quadratic constant-state recurrent inference

Unifies attention-style training with recurrent deployment through reten- tion and decay. Mamba linear constant-state recurrent inference

Selective state-space model with hardware-aware scan; strong long- context efficiency. ODE Trans- former solver- dependent solver- dependent Continuous-depth interpretation with accuracy gains from multi-stage nu- merical integration. Titans roughly linear in sequence length

memory- retrieval centered

Adds test-time adaptive memoriza- tion for extreme context and recall.

C Annex C: Sparse Attention Families from SPARSE_TRANSFORMER_TYPES.md

C.1 Executive Summary

The sparse-attention report treats sparsity as a full design space rather than a single approx- imation trick. The methods vary along three axes: whether the sparse pattern is fixed or data-dependent, whether the mechanism is trainable or training-free, and whether the sparsity unit is a token, a window, or a block.

C.2 Sparse Transformer

Sparse Transformer uses factorized sparse masks built from strided and fixed connectivity pat- terns. The markdown emphasizes that two sparse heads can approximate full reachability with much lower cost than dense attention. The advantages are strong early empirical results and sub-quadratic complexity; the drawback is that the pattern is data-agnostic.

C.3 Longformer

Longformer combines sliding-window locality, optional dilation, and task-specific global tokens. Its main value is practical linear scaling for long documents. The report notes that it is a drop-in replacement for standard attention in many settings, but window size and global-token selection remain task-dependent design choices.

C.4 BigBird

BigBird mixes local windows, random connections, and global tokens. The sparse-attention markdown highlights its theoretical guarantees: universal approximation and Turing complete- ness can be preserved with sparse graphs as long as enough global structure is retained.

C.5 FASA

FASA is a training-free decode-time method that predicts token importance from dominant frequency chunks in RoPE-based models. The key claims in the source are strong KV-cache compression and decoding speedup, plus compatibility with other compression methods. The

Pairwise token interaction Standard / Sigmoid attention

Decayed recurrent state RetNet / HGRN2 / GLA

Selective state evolution Mamba-like SSMs

Adaptive external memory Titans-style updates

Figure 9: Annex view of transformer evolution: the field moves from explicit pairwise routing toward progressively more compressed or adaptive memory formulations.

limitations are its dependence on a frequency-analysis step and its focus on decoding rather than full training-time attention.

C.6 NSA

Native Sparse Attention is a trainable three-branch architecture composed of compressed, se- lected, and window branches. The report frames it as hardware-aligned sparse attention designed to use tensor cores efficiently. Its complexity is not only algorithmic but also architectural be- cause the method introduces multiple branches and gating logic.

C.7 SparseK

SparseK uses a differentiable top-k selection mechanism to determine which key/value pairs should participate in attention. The report presents it as end-to-end trainable and especially attractive for generation because the active memory can remain small. The weakness is that top-k selection may lead to irregular memory access patterns.

C.8 SpargeAttn

SpargeAttn is a training-free universal sparse method that first predicts negligible interactions and then applies softmax-aware filtering. The survey highlights that it applies beyond language models to image and video diffusion workloads as well. Its performance depends on whether the model already contains enough inherent sparsity to exploit.

C.9 Comparison Pattern

Across the markdown source, the methods naturally group into:

1. patterned sparsity: Sparse Transformer and Longformer,

2. graph sparsity: BigBird,

3. learned or predicted selection: SparseK and NSA,

4. training-free acceleration: SpargeAttn and FASA.

Method Mechanism Trainable Sparsity Unit Main Takeaway from the Markdown

Sparse Trans- former strided + fixed factorized masks Yes token neigh- borhood Structured reachability lowers cost but remains data-agnostic. Longformer sliding window + dilation + global tokens

Yes local window + global an- chors

Practical linear scaling for long documents with selective global access. BigBird random + local + global sparse graph

Yes sparse edge set / blocks Preserves strong theoretical properties while remaining sparse. FASA frequency-aware decode-time selection

No selected to- kens / cache entries

Training-free KV compression guided by RoPE frequency structure. NSA compressed + se- lected + window branches

Yes branchwise re- duced views Hardware-aligned trainable sparsity with learned branch fusion. SparseK differentiable top- k selection Yes selected key/value pairs

End-to-end selective attention with small active memory.

SpargeAttn two-stage online block filtering No attention blocks Training-free acceleration path for already trained dense mod- els.

Method Complexity Trend Training- Free? Pros / Cons Emphasized in the Markdown

Sparse Trans- former sub-quadratic No Strong early benchmarks and long-sequence reach, but fixed patterns may miss important in- teractions. Longformer linear in se- quence length for fixed win- dow

No Scales well and is flexible, but still depends heavily on window and global-token design.

BigBird near-linear No Strong theory and long-context performance, but randomness and block structure complicate tuning. FASA decode-time selective Yes Plug-and-play compression and speedup, but depends on RoPE/frequency analysis quality. NSA reduced-token multi-branch No High speedups and strong bench- mark results, but requires cus- tom kernels and extra architec- ture complexity. SparseK linear train / small active generation state

No Differentiable and trainable, but adds scoring overhead and scat- tered access.

SpargeAttn sparsity- dependent acceleration

Yes Universal and training-free, but gains depend on how sparse the underlying model already is.

D Annex D: Gated Attention Families from GATED_TRANSFORMER_TYPES.md

D.1 Executive Summary

The gated-attention survey argues that gating is the missing control mechanism in many linear- attention and recurrent alternatives. Without it, memory only accumulates. With it, the model can forget, rewrite, or selectively scale information. The source splits the field into recurrent- state gating and softmax-path gating.

D.2 Gated Linear Attention (GLA)

GLA augments linear attention with a data-dependent multiplicative decay gate. The survey emphasizes that this directly addresses memory overload in additive recurrent states and that chunkwise training makes the method hardware friendly. The tradeoff is that the gate is still less expressive than full attention on retrieval-heavy tasks.

D.3 DeltaNet

DeltaNet replaces pure accumulation with a delta-rule update: the memory is corrected by comparing the retrieved value against the desired value. The source frames this as online error correction and connects it to test-time training ideas. Its strength is strong associative recall; its weakness is memory crowding because there is no explicit global forgetting.

D.4 Gated DeltaNet

Gated DeltaNet combines the two ideas above: a decay gate controls forgetting while the delta rule controls targeted writing. In the markdown this is presented as the most balanced pure linear recurrent design because it supports rapid erasure and precise updates at the same time.

D.5 RetNet

RetNet appears again in the gated survey because fixed exponential decay can be interpreted as a gate. The report contrasts it with fully data-dependent methods: RetNet is simpler and efficient, but its forgetting pattern is predetermined rather than learned token by token.

D.6 HGRN2

HGRN2 uses lower-bounded hierarchical forget gates with outer-product state expansion. The markdown stresses that the hierarchical bounds encourage different layers to specialize to dif- ferent timescales, though the method still lags behind stronger retrieval-oriented gated models.

D.7 Forgetting Transformer (FoX)

FoX keeps full softmax attention but adds a forget gate in logit space. The report treats it as a conservative modification for users who want the expressive power of dense attention while still imposing recency-aware memory control. Its main limitation remains quadratic complexity.

D.8 Gated Attention after SDPA

The final architecture in the source applies a sigmoid gate after scaled dot-product attention. The survey highlights two claimed benefits: the extra nonlinearity breaks part of the low-rank bottleneck in the output path, and the gate helps suppress the attention-sink phenomenon. This is the least disruptive gated variant because it leaves the core attention operator intact.

D.9 Taxonomy and Comparison Dimensions

The source also adds two useful comparison lenses:

• state type: fixed recurrent matrix state versus full attention matrix,

• gate location: recurrent decay, write strength, logit bias, or post-attention modulation.

Method Gate Loca- tion Dense Soft- max? Main Interpretation in the Markdown

GLA recurrent state decay No Adds forgetting to linear atten- tion to avoid uncontrolled mem- ory accumulation. DeltaNet write strength in recurrent up- date

No Uses error-correcting writes for targeted memory replacement.

Gated DeltaNet decay + write gates No Combines global forgetting with local corrective memory editing. RetNet fixed decay in retention state No Uses deterministic multi-scale de- cay rather than a fully data- dependent gate. HGRN2 lower-bounded recurrent forget gates

No Hierarchical gating distributes time scales across depth.

FoX attention-logit bias Yes Injects forget dynamics into the standard softmax pipeline. Gated Softmax post-attention output gate Yes Keeps SDPA intact and adds mul- tiplicative modulation afterward.

Architecture State Type Recall Strength Pros / Cons Emphasized in the Markdown

GLA matrix re- current state moderate Good length generalization and chunkwise efficiency, but still weaker than softmax on hard retrieval. DeltaNet matrix re- current state strong Excellent associative recall and prin- cipled updates, but lacks global for- getting. Gated DeltaNet matrix re- current state very strong Best-balanced pure linear recurrent design, but richer transitions reduce throughput. RetNet matrix re- current state weaker retrieval bias Efficient and simple with no KV cache, but fixed decay is less adap- tive. HGRN2 matrix re- current state moderate Multi-scale temporal modeling via hierarchical bounds, but lower recall than DeltaNet variants. FoX full attention path very strong Preserves softmax expressiveness and improves length extrapolation, but remains quadratic. Gated Attention full attention path strong Very simple modification with low overhead, but only applicable when dense SDPA is already present.

References

[1] Ali Behrouz, Peilin Zhong, and Vahab Mirrokni. Titans: Learning to memorize at test time, . URL http://arxiv.org/abs/2501.00663.

[2] Ali Behrouz, Peilin Zhong, and Vahab Mirrokni. Titans: Learning to memorize at test time, . URL https://arxiv.org/abs/2501.00663. Version Number: 1.

[3] Iz Beltagy, Matthew E. Peters, and Arman Cohan. Longformer: The long-document trans- former, 2020. URL https://arxiv.org/abs/2004.05150.

[4] Thibaut Boissin, Thomas Massena, Franck Mamalet, and Mathieu Serrurier. Turbo- muon: Accelerating orthogonality-based optimization with pre-conditioning. URL https: //arxiv.org/abs/2512.04632. Version Number: 1.

[5] Riccardo Bravin, Massimo Pavan, Hazem Hesham Yousef Shalby, Fabrizio Pittorino, and Manuel Roveri. EmbBERT: Attention under 2 MB memory. URL http://arxiv.org/abs/ 2502.10001.

[6] Minh Duc Bui, Fabian David Schmidt, Goran Glavaš, and Katharina von der Wense. Knowl- edge distillation vs. pretraining from scratch under a fixed (computation) budget. URL http://arxiv.org/abs/2404.19319.

[7] Weilin Cai, Juyong Jiang, Fan Wang, Jing Tang, Sunghun Kim, and Jiayi Huang. A survey on mixture of experts in large language models. pages 1–20. ISSN 1041-4347, 1558-2191, 2326-3865. doi: 10.1109/TKDE.2025.3554028. URL http://arxiv.org/abs/2407.06204.

[8] José Cañete, Gabriel Chaperon, Rodrigo Fuentes, Jou-Hui Ho, Hojin Kang, and Jorge Pérez. Spanish pre-trained BERT model and evaluation data. URL http://arxiv.org/ abs/2308.02976.

[9] Mingzhi Chen, Taiming Lu, Jiachen Zhu, Mingjie Sun, and Zhuang Liu. Stronger normalization-free transformers, . URL http://arxiv.org/abs/2512.10938.

[10] Xiangning Chen, Chen Liang, Da Huang, Esteban Real, Kaiyuan Wang, Yao Liu, Hieu Pham, Xuanyi Dong, Thang Luong, Cho-Jui Hsieh, Yifeng Lu, and Quoc V. Le. Symbolic discovery of optimization algorithms, . URL https://arxiv.org/abs/2302.06675. Version Number: 4.

[11] Rewon Child, Scott Gray, Alec Radford, and Ilya Sutskever. Generating long sequences with sparse transformers, 2019. URL https://arxiv.org/abs/1904.10509.

[12] Chang Dai, Hongyu Shan, Mingyang Song, and Di Liang. HoPE: Hyperbolic rotary posi- tional encoding for stable long-range dependency modeling in large language models. URL http://arxiv.org/abs/2509.05218.

[13] Aaron Defazio, Xingyu Alice Yang, Harsh Mehta, Konstantin Mishchenko, Ahmed Khaled, and Ashok Cutkosky. The road less scheduled. URL https://arxiv.org/abs/2405.15682. Version Number: 4.

[14] Jacob Devlin, Ming-Wei Chang, Kenton Lee, and Kristina Toutanova. BERT: Pre-training of deep bidirectional transformers for language understanding. URL http://arxiv.org/ abs/1810.04805.

[15] Taj Gillin, Adam Lalani, Kenneth Zhang, and Marcel Mateos Salles. BERT-JEPA: Reor- ganizing CLS embeddings for language-invariant semantics. URL http://arxiv.org/abs/ 2601.00366.

[16] Albert Gu and Tri Dao. Mamba: Linear-time sequence modeling with selective state spaces, . URL https://arxiv.org/abs/2312.00752. Version Number: 2.

[17] Albert Gu and Tri Dao. Mamba: Linear-time sequence modeling with selective state spaces, . URL http://arxiv.org/abs/2312.00752.

[18] Vineet Gupta, Tomer Koren, and Yoram Singer. Shampoo: Preconditioned stochastic tensor optimization. URL https://arxiv.org/abs/1802.09568. Version Number: 2.

[19] Sukjun Hwang, Aakash Lahoti, Tri Dao, and Albert Gu. Hydra: Bidirectional state space models through generalized matrix mixers. URL http://arxiv.org/abs/2407.09941.

[20] Kaizhao Liang, Lizhang Chen, Bo Liu, and Qiang Liu. Cautious optimizers: Improving training with one line of code. URL https://arxiv.org/abs/2411.16085. Version Num- ber: 4.

[21] Zhixuan Lin, Ke Wang, et al. Forgetting transformer: Softmax attention with a forget gate, 2025. URL https://arxiv.org/abs/2503.02130.

[22] Hong Liu, Zhiyuan Li, David Hall, Percy Liang, and Tengyu Ma. Sophia: A scalable stochastic second-order optimizer for language model pre-training, . URL https://arxiv. org/abs/2305.14342. Version Number: 4.

[23] Liyuan Liu, Haoming Jiang, Pengcheng He, Weizhu Chen, Xiaodong Liu, Jianfeng Gao, and Jiawei Han. On the variance of the adaptive learning rate and beyond, . URL https: //arxiv.org/abs/1908.03265. Version Number: 4.

[24] Ilya Loshchilov and Frank Hutter. Decoupled weight decay regularization. URL https: //arxiv.org/abs/1711.05101. Version Number: 3.

[25] Tianyu Lou, Zheyu Chen, Tao Yu, et al. Efficient sparse attention for long-range trans- formers, 2024. URL https://arxiv.org/abs/2406.16747.

[26] Konstantin Mishchenko and Aaron Defazio. Prodigy: An expeditiously adaptive parameter- free learner. URL https://arxiv.org/abs/2306.06101. Version Number: 4.

[27] Matteo Pagliardini, Pierre Ablin, and David Grangier. The AdEMAMix optimizer: Better, faster, older. URL https://arxiv.org/abs/2409.03137. Version Number: 2.

[28] Zhen Qin, Xu Han, et al. Hgrn2: Gated linear rnns with state expansion, 2024. URL

https://arxiv.org/abs/2404.07904.

[29] Yuxiang Qiu, Qwen Team, et al. Gated attention for large language models, 2025. URL

https://arxiv.org/abs/2505.06708.

[30] Jason Ramapuram, Federico Danieli, Eeshan Dhekane, Floris Weers, Dan Busbridge, Pierre Ablin, Tatiana Likhomanenko, Jagrit Digani, Zijin Gu, Amitis Shidani, and Russ Webb. Theory, analysis, and best practices for sigmoid self-attention. URL https://arxiv.org/ abs/2409.04431. Version Number: 2.

[31] Nils Reimers and Iryna Gurevych. Sentence-BERT: Sentence embeddings using siamese BERT-networks. URL http://arxiv.org/abs/1908.10084.

[32] Hema Hariharan Samson. Lightweight transformer architectures for edge devices in real- time applications. URL http://arxiv.org/abs/2601.03290.

[33] Noam Shazeer and Mitchell Stern. Adafactor: Adaptive learning rates with sublinear mem- ory cost. URL https://arxiv.org/abs/1804.04235. Version Number: 1.

[34] Wei Shen, Ruichuan Huang, Minhui Huang, Cong Shen, and Jiawei Zhang. On the con- vergence analysis of muon. URL https://arxiv.org/abs/2505.23737. Version Number: 1.

[35] Yutao Sun, Li Dong, Shaohan Huang, Shuming Ma, Yuqing Xia, Jilong Xue, Jianyong Wang, and Furu Wei. Retentive network: A successor to transformer for large language models, . URL http://arxiv.org/abs/2307.08621.

[36] Zhiqing Sun, Hongkun Yu, Xiaodan Song, Renjie Liu, Yiming Yang, and Denny Zhou. MobileBERT: a compact task-agnostic BERT for resource-limited devices, . URL http: //arxiv.org/abs/2004.02984.

[37] Shohei Taniguchi, Keno Harada, Gouki Minegishi, Yuta Oshima, Seong Cheol Jeong, Go Nagahara, Tomoshi Iiyama, Masahiro Suzuki, Yusuke Iwasawa, and Yutaka Mat- suo. ADOPT: Modified adam can converge with any $_2$ with the optimal rate. URL https://arxiv.org/abs/2411.02853. Version Number: 3.

[38] Ashish Vaswani, Noam Shazeer, Niki Parmar, Jakob Uszkoreit, Llion Jones, Aidan N. Gomez, Lukasz Kaiser, and Illia Polosukhin. Attention is all you need. URL https: //arxiv.org/abs/1706.03762. Version Number: 7.

[39] Nikhil Vyas, Depen Morwani, Rosie Zhao, Mujin Kwun, Itai Shapira, David Brandfon- brener, Lucas Janson, and Sham Kakade. SOAP: Improving and stabilizing shampoo using adam. URL https://arxiv.org/abs/2409.11321. Version Number: 2.

[40] Hongyu Wang, Shuming Ma, Li Dong, Shaohan Huang, Huaijie Wang, Lingxiao Ma, Fan Yang, Ruiping Wang, Yi Wu, and Furu Wei. BitNet: Scaling 1-bit transformers for large language models. URL http://arxiv.org/abs/2310.11453.

[41] Zhe Wang, Ming Liu, et al. Fasa: Frequency-aware sparse attention, 2026. URL https: //arxiv.org/abs/2602.03152.

[42] Xingyu Xie, Pan Zhou, Huan Li, Zhouchen Lin, and Shuicheng Yan. Adan: Adaptive nesterov momentum algorithm for faster optimizing deep models. URL https://arxiv. org/abs/2208.06677. Version Number: 5.

[43] Haiqi Yang, Zhiyuan Li, Yi Chang, and Yuan Wu. A survey of retentive network, . URL

http://arxiv.org/abs/2506.06708.

[44] Liu Yang, Kangwook Lee, Robert Nowak, and Dimitris Papailiopoulos. Looped transformers are better at learning learning algorithms, . URL http://arxiv.org/abs/2311.12424.

[45] Songlin Yang, Bailin Wang, et al. Gated linear attention transformers with hardware- efficient training, 2023. URL https://arxiv.org/abs/2312.06635.

[46] Songlin Yang, Bailin Wang, et al. Parallelizing linear transformers with the delta rule over sequence length, 2024. URL https://arxiv.org/abs/2406.06484.

[47] Songlin Yang, Bailin Wang, et al. Gated delta networks: Improving mamba2 with delta rule, 2024. URL https://arxiv.org/abs/2412.06464.

[48] Daryl Noupa Yongueng and Hamidou Tembine. Holonorm. URL http://arxiv.org/abs/ 2511.10504.

[49] Han Yuan, DeepSeek-AI, et al. Native sparse attention: Hardware-aligned and natively trainable sparse attention, 2025. URL https://arxiv.org/abs/2502.11089.

[50] Huizhuo Yuan, Yifeng Liu, Shuang Wu, Xun Zhou, and Quanquan Gu. MARS: Unleashing the power of variance reduction for training large models. URL https://arxiv.org/abs/ 2411.10438. Version Number: 4.

[51] Manzil Zaheer, Guru Guruganesh, Kumar Avinava Dubey, Joshua Ainslie, Chris Alberti, Santiago Ontanon, Pike Pham, Anirudh Ravula, Qifan Wang, Li Yang, and Amr Ahmed. Big bird: Transformers for longer sequences. In Advances in Neural Information Processing Systems, 2020. doi: 10.48550/ARXIV.2007.14062. URL https://arxiv.org/abs/2007. 14062.

[52] Jing Zhang, Peng Zhang, Baiwen Kong, Junqiu Wei, and Xin Jiang. Continuous self- attention models with neural ODE networks. 35(16):14393–14401, . ISSN 2374-3468, 2159- 5399. doi: 10.1609/aaai.v35i16.17692. URL https://ojs.aaai.org/index.php/AAAI/ article/view/17692.

[53] Jingzhao Zhang, Tianxing He, Suvrit Sra, and Ali Jadbabaie. Why gradient clipping accel- erates training: A theoretical justification for adaptivity, . URL http://arxiv.org/abs/ 1905.11881.

[54] Yichi Zhang, Yizhong Wang, et al. Accurate and training-free sparse attention accelerating any model inference, 2025. URL https://arxiv.org/abs/2502.18137.

[55] Jiawei Zhao, Zhenyu Zhang, Beidi Chen, Zhangyang Wang, Anima Anandkumar, and Yuan- dong Tian. GaLore: Memory-efficient LLM training by gradient low-rank projection. URL https://arxiv.org/abs/2403.03507. Version Number: 2.

[56] Jiachen Zhu, Xinlei Chen, Kaiming He, Yann LeCun, and Zhuang Liu. Transformers without normalization. URL http://arxiv.org/abs/2503.10622.
